The EOS 54 was designed by Christophe Barreau, who has played an important leading part in the development of fast cruising catamarans from France in recent years.

Fast and comfortable cruising catamaran.

Choose the layout which suits you, either you prefer only a 2 x cabin version ,3 x cabin owner’s version or 4 to 5 double cabins.The construction and features offered by the boat yard are up to the highest standard.

Contact us to make you an offer for a boat that is specially fitted to your requirements.

Additional Information

Different choice of Layouts

2  x double  cabins - 2 bathrooms - 2 lavatories

3 x double berth cabins - 3 bathrooms - 3 lavatories -

Standard 4 x double berth cabins - 4 bathrooms - 4 lavatories

5 x cabins: 4 double berth cabins + 2 single bunk berths - 3 bathrooms - 2 lavatories

Option: double cabin for Skipper and Hostess, with bathroom (shower, basin, toilet) with independent entry.

ALL VERSIONS Double beds: 2 independant bed bases, with hydraulic cylinders and hinges Berths: slatted bed base

On starboard: location for the washing machine - 1 holding tank

On portside 1 x wardrobe and storages - 1 fresh products preserver

1 location for freezer drawers (-18°C - 140L) ISOTHERM

For each hull 1 companion way with a handrail 1x Jabsco pressurised fresh water system 1 NAUTIC BOILER 1200W 60L water heater

LED lights to the roofs 1 x safety hatch under the companion way

TWO CABIN VERSION

For each hull: 1 sliding door (with lock), in the companion way

1 double cabin with 1 double berth (160 cm x 200 cm) - high density foam mattress, washable cover Headboard individual lighting - little storages 1 wardrobe (tubular structure and canvas) - large storage under the bed 1 outer shell plexiglass with opening portlight 1 headboard plexiglass with opening portlight

1 lounge 2 sofas and 1 desk

1 wardrobe and storages

1 outer shell plexiglass with opening portlight

1 bathroom 1 separate shower (with mixer tap) - 1 basin - cabinet with mirror Storage for bathroom linen and toiletry items - 1 towel rail Outer shell plexiglass with opening portlight

1 independent lavatory with manual toilet

OWNER’S VERSION - 3 CABINS

On starboard : 1 sliding door (with locker), in the companion way 1 double cabin

1 double berth (160 cm x 200 cm) - high density foam mattress, washable cover Headboard individual lighting - little storages 1 wardrobe (tubular structure and canvas) - large storage under the bed 1 outer shell plexiglass with opening portlight

1 headboard plexiglass with opening portlight

1 lounge  with 2 sofas and 1 desk - 1 wardrobe and storages

1 outershell plexiglass with opening portlight

1 bathroom with 1 separate shower (with mixer tap) - 1 basin - cabinet with mirror Storage for bathroom linen and toiletry items - 1 towel rail

Outer shell plexiglass with opening portlight

1 independant lavatory with manual toilet

On portside 2 double cabins, with each

1 double berth (160 cm x 200 cm) - high density foam mattress, washable cover Headboard individual lighting - little storages 1 wardrobe (tubular structure and canvas) - large storage under the bed 1 outer shell plexiglass with opening portlight

Aft cabin: 1 headboard plexiglass with opening portlights

1 private bathroom per cabin 1 shower (with mixer tap) - 1 basin - cabinet with mirror Storage for bathroom linen and toiletry items- 1 towel rail Outer shell plexiglass with opening portlight

1 lavatory for the hull with manual toilet - 1 outer shell plexiglass

FOUR CABIN VERSION

For each hull: 2 double cabins with for each:

1 double berth (160 cm x 200 cm) - high density foam mattress, washable cover Headboard individual lighting - little storages 1 wardrobe (tubular structure and canvas) - large storage under the bed 1 outer shell plexiglass with opening portlight

Aft cabins: 1 headboard plexiglass with opening portlight

1 private bathroom per cabin: 1 shower (with mixer tap) - 1 basin - cabinet with mirror Storage for bathroom linen and toiletry items - 1 towel rail

Outer shell plexiglass with opening portlight

1 independant lavatory with manual toilet - 1 outer shell plexiglass

FIVE CABIN VERSION

On starboard: 2 double cabins with for each:

1 double berth (160 cm x 200 cm) - high density foam mattress, washable cover Headboard individual lighting - little storages 1 wardrobe (tubular structure and canvas) - large storage under the bed 1 outer shell plexiglass with opening portlight

Aft cabin: 1 headboard plexiglass with opening portlight

1 central cabin with: 2 bunk beds - high density foam mattress, washable cover Headboard individual lighting – storages - Storages under the berths

1 bathroom for the hull:: 1 shower (with mixer tap) - 1 basin - cabinet with mirror Storage for bathroom linen and toiletry items - 1 towel rail Outer shell plexiglass with opening portlight

1 lavatory for the hull with manual toilet - 1 outer shell plexiglass

On portside: 2 double cabins, with each

1 double berth (160 cm x 200 cm) - high density foam mattress, washable cover Headboard individual lighting - little storages 1 wardrobe (tubular structure and canvas) - storage under the bed 1 outer shell plexiglass with opening portlight

Aft cabin: 1 headboard plexiglass with opening portlight

1 private bathroom per cabin: 1 shower (with mixer tap) - 1 basin - cabinet with mirror Storage for bathroom linen and toiletry items - 1 towel rail Outer shell plexiglass with opening portlight

1 lavatory for the hull with manual toilet - 1 outer shell plexiglass

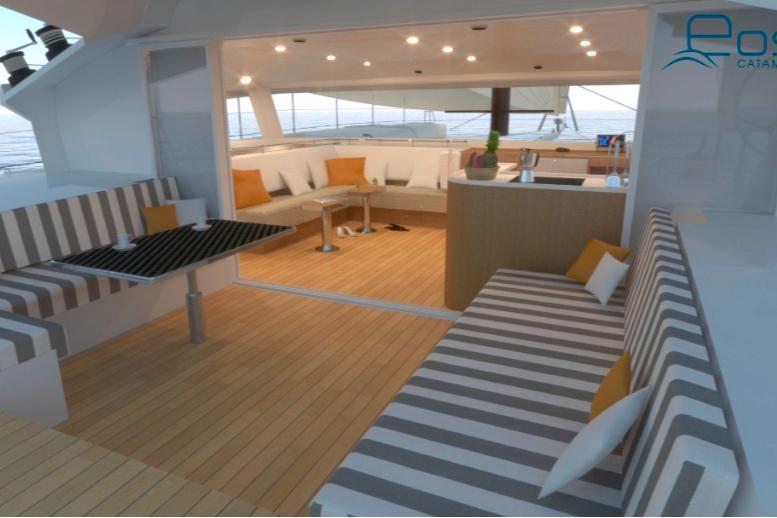

EOS WAY OF LIFE

Vast and continuous living space, comprised of the cockpit and the saloon, on the same level. This cockpit-saloon set can be considered or as two distinct spaces, or as one unic big space for receiving up to 12 guests.

Sliding door with 3 sliding casements, aluminium structure, with key locking

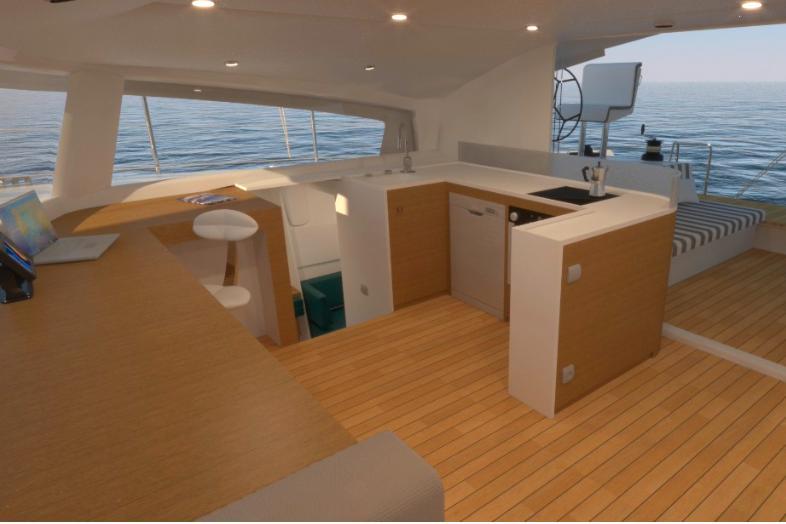

SALOON - GALLEY - CHART TABLE

U-SHAPED PANORAMIC VIEW GALLEY (on starboard when entering) 1 stainless steel sink - 1 fresh water mixer tap (cold/hot water) - 1 sea water tap 1 dish rack 1 Corian counter top 1 storage space (dish-washer option) 1 garbage can under the counter 1 ENO recessed ceramic-glass cooktop, 3 burners

1 roof hatch over the cooktops for ventilation 1 second Corian counter top 2 cutlery drawers 1 storage space under the counter for dishes 1 storage for pans

1 220V socket

STORAGE (forward center) 2 drawer refrigerators (95L + 65L) ISOTHERM Storages for food products

INTERIOR ARRANGEMENTS

Laminated plywood interior furnitures White lacquered interior top coat Saddlery in Sylvertex: saloon, cockpit and cabins Interior LED lights to the roof Windscreen in polycarbonate on 3 sides; in front: 2 large opening hatches 2 Goiot opening hatches to the roof (including 1 in the kitchen) 1 set of 220v 12v and USB sockets 1 220V control panel - 1 waterproof box: 2 differential circuit breakers and 16

circuit breakers

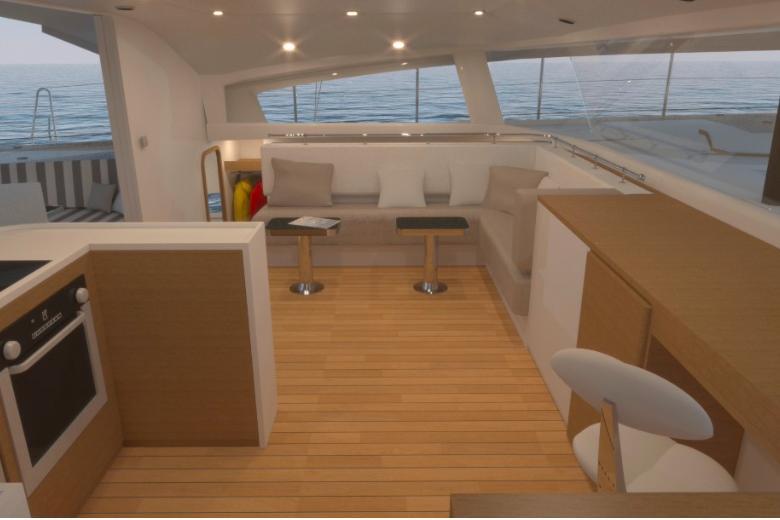

SALOON (on portside) 1 fixed L-shaped seat for (3 + 2 places), with saddlery 2 table legs on cylinder with coffee tables 1 two-part mobile table (in common with the cockpit) set on the two table legs This set can be converted into a double berth for guests Storages under seats Capacity to welcome (with additional seats): 8 people 1 rest area over the passageway, that can be used as an extra berth - light

CHART TABLE (on starboard forward) 1 L-shaped table offering a panoramic outside view, with two workplans and

allowing a perfect control of the navigation station 1 of the desks facing the front 1 with drop-leaf and hydraulic cylinders 1 electronics support console

1 flexible LED light - white or red lighting Storages under the table 1 220V socket

 ENGINES

2 x Volvo Penta D2 inboard engines - 50 HP

Saildrive transmission

Isolated engines compartments

2 x three-blade folding propellers

1 x electric command box at the helm station

WATER - TANKS

2 x NAUTIC BOILER 1200W 60 L water heaters - stainless steel tank

Diesel capacity 2 X 200 Liters

Fresh water capacity 2 X 400 Liters

ELECTRICITY 2 x 12v 220Ah GEL VICTRON batteries

1x Phoenix 12v 50A VICTRON charger

1 x service batteries controller

1 x 230V dock socket and 25m dock extension cable

1 220V electric control panel

1x 12V electric control panel

PUMPS

4 automatic electric pumps (with integrated release mechanism)

4 manual pumps

COCKPIT

The cockpit is protected with a rigid bimini, integrated with the roof Anti-slippery cockpit floor Self-draining cockpit, according to EC norms

1 set of outside LED lights

on portside: 1 fixed L-shaped seat for (3 + 2 places), with saddlery 2 table legs on cylinder with coffee tables

1 two-part mobile table (in common with the saloon) set on the two table legs

Capacity to welcome (with additional seats): 8 people

Between the seat and the portside catwalk: optional sun lounger Storages under seats

on starboard: 1 fixed 3 place seat, with saddlery Storages under seats

MAST AND RIGGING MARECHAL

Mast: 22,70 m, anodized grey aluminum - main sail luff batt-car system

2 levels of spreaders Mast resting on the deck

Mast step in anodized aluminum

Anodized grey aluminum boom with spacers Standing rigging sheathed cable: 2 upper shrouds - 2 inner shrouds - 1 forestay with furler

Front and compression beams in anodized grey aluminum Genoa furler on forestay Windvane on mast head

1 combo steaming and deck LED lights Navigation and mooring LED lights

Main sail halyard in Spectra and running rigging in polyester

Running rigging controllable from the cockpit Genoa furler line

Reefing lines - tack reefing lines - topping lift

SAILS - INCIDENCE

Mainsail, full batten, with a high roach - 101m2 - woven (Dacron) 3 reefs Headboard,

tack and clew: banded stainless steel ring Transport bag

Genoa- 64m2 - woven (Dacron) - on furler UV protection on leech and foot Transport bag

DECK FITTINGS - ANTAL

2 x genoa tracks on the roof

2 flush deck

 4 blocks boxes

 Winch at helm station:

2 x winchs: main sheet tuning

2 x winchs: solent sheet tuning, furler and flying furlers

1 x winch at mast foot for halyards and reefs 1 stopper for main sail halyard 1 stopper for genoa halyard

1 stopper for furler line in the cockpit

1 triple stopper for luff reefing lines 2 winch handles

DECK PLAN

Mainsail: tuning on 3 lines double hoists Continuous sheet port-starboard

Trampoline: braided polyester net, attached mesh by mesh

2 x fore pulpits with seat Stainless steel Goïot stanchions equipped with two levels of textile guardrails Lifeline straps

2 x big storages in front of the mast

2 x Goiot aluminium handrails on the roof

2 x aluminium davits - hoists for lifting the dinghy - stoppers Aft pulpits with 1 lifebuoy support 1 stainless steel Goiot handrail on each transom

1 retractable stainless steel swim ladder in the starboard transom

1 platform power supply

1 emergency tiller

HELM STATION

Easy to reach from the catwalk 1 stainless steel two position helmsman seat 1 pulpit with stainless steel steering wheel, textile lines Electronics support console Lines bags for halyards and sheets storage

MOORINGS - MOORING ROPES

1 1700w 12v Lofran's Tigre windlass, with horizontal chain grab

1 radio control and chain counter

1 bridle Main mooring: one 20 k anchor + 80 m chain

1 self-draining mooring locker hatch

1 rotative stainless steel anchor bed

6 Goiot aluminium mooring cleats

SECURITY

12 pax life raft + grab bag 1 portable VHF 1 epirb 12 life jackets + ropes

6 extinguishers

1 deep-sea distress rocket box

1 black ball / 1 black cone

1 lifebuoy and 1 floating flashlight

1 monocular and 1 integrated compass

1 set of flags (nat/N/C)

1 waterproof projector

VOLVO D2-50 de 2024
50 hp
diesel
Inboard
3 Blade, Folding

Volvo D2- 50 de 2024
50 hp
Inboard
3 Blade, Folding

Nombre moteurs : 2

Puissance : 50

Année moteur : 2024

Hélices : 3 blade, folding

Carburant : 59

Nb de cabines : 3

Nb salles de bain : 3

• Guindeau
