Additional Information

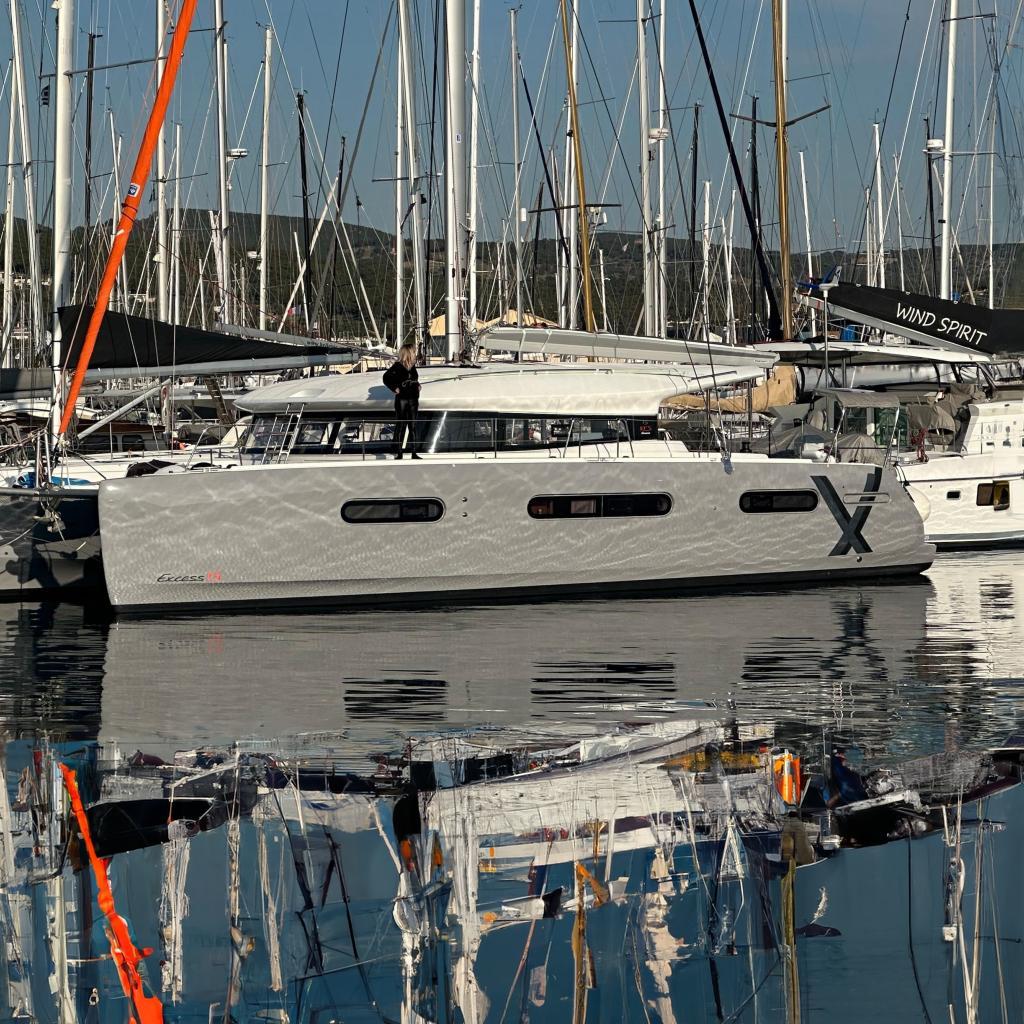

EXCESS 15
HIN # IRIZY019F324
Launched 06/2023
Architect: VPLP
Builder: CNB
CE Certification Cat A: 14 Pax

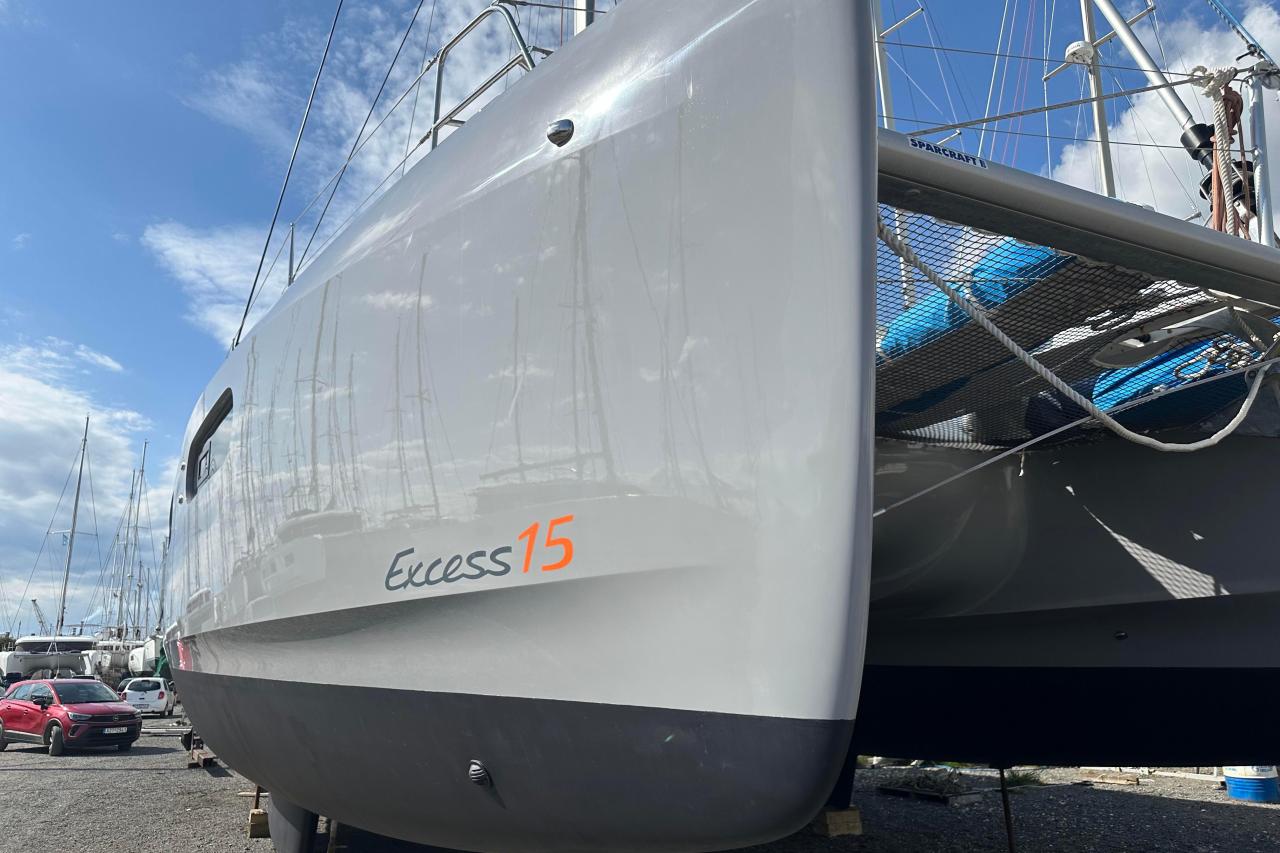

Light grey gelcoat finish hull topsides and White gelcoat superstructures
Sandwich construction with PVC and Balsa core
Builder’s Warranty 06/23/26, Structural 06/23/28
Engine Warranty 06/20/28
INTERIOR LAYOUT
Owner's version

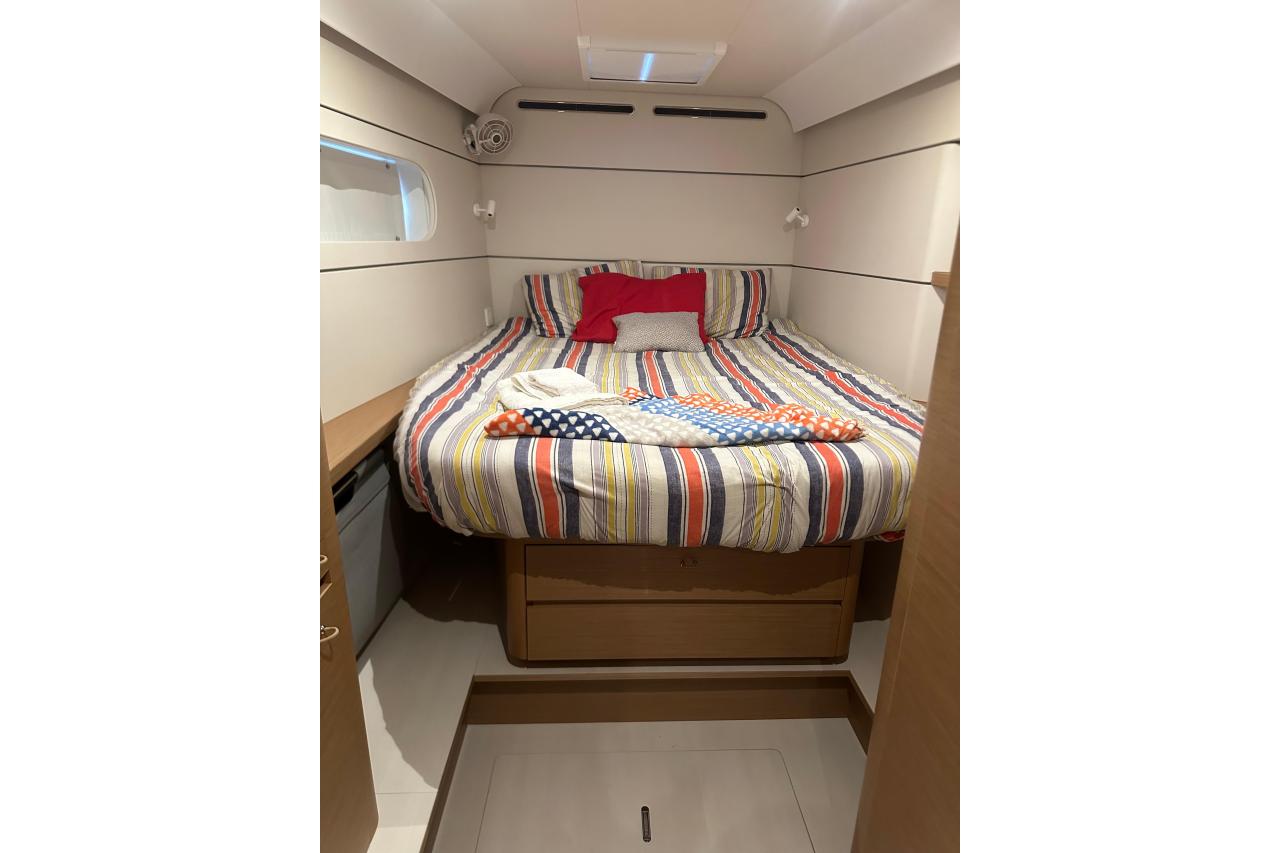

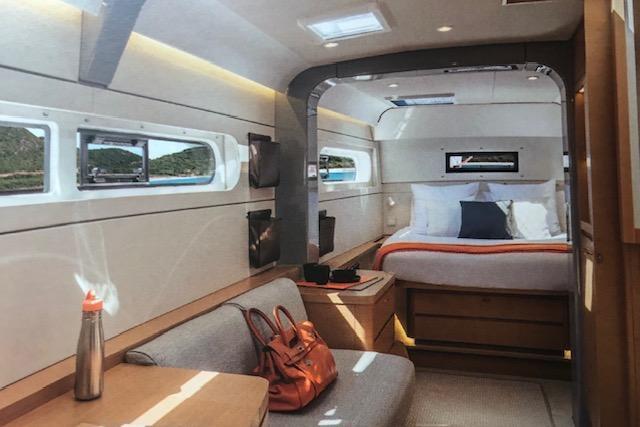

STBD side owner’s cabin with private bathroom
Portside fwd and aft double cabins with private bathrooms
Middle cabin with double berth
Additional head and shower in Port side forepeak
Starboard forepeak for spare parts and accessories

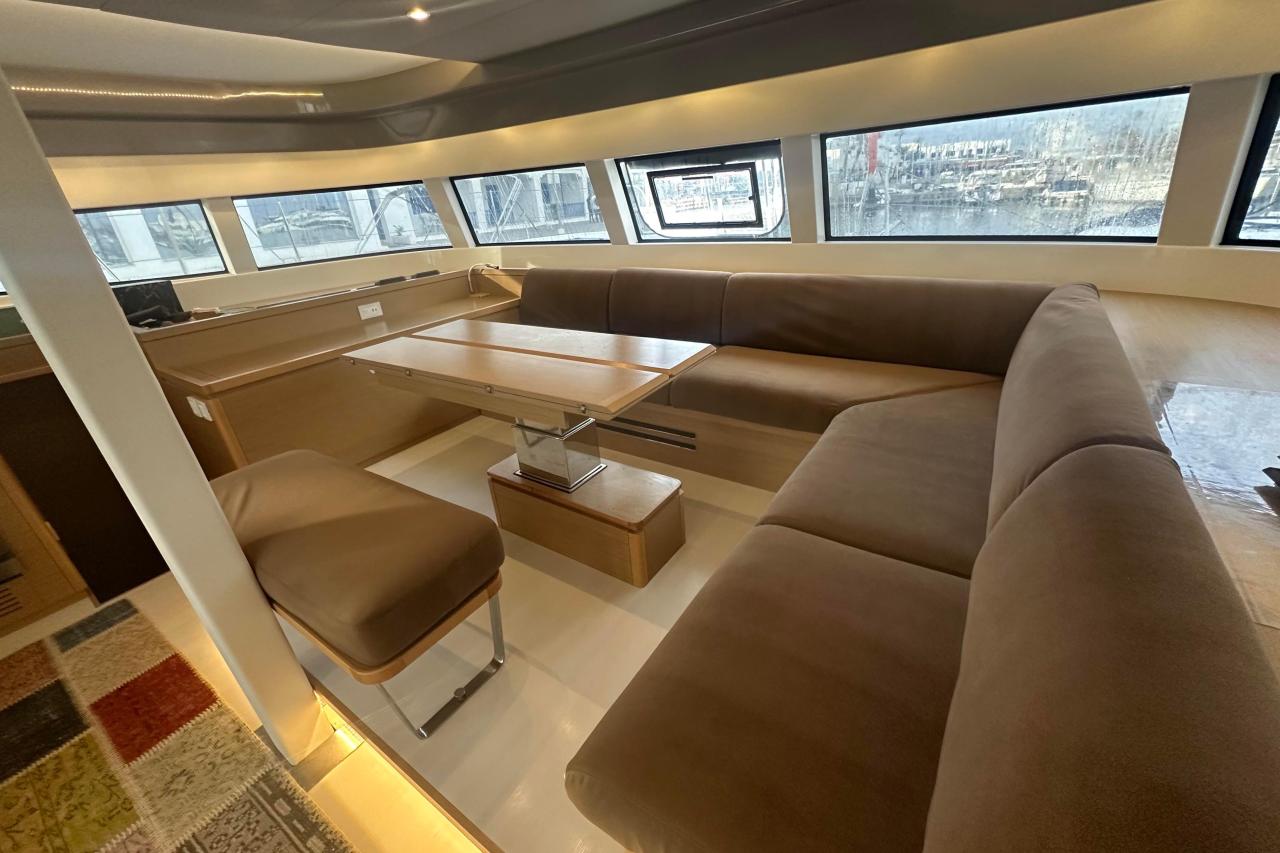

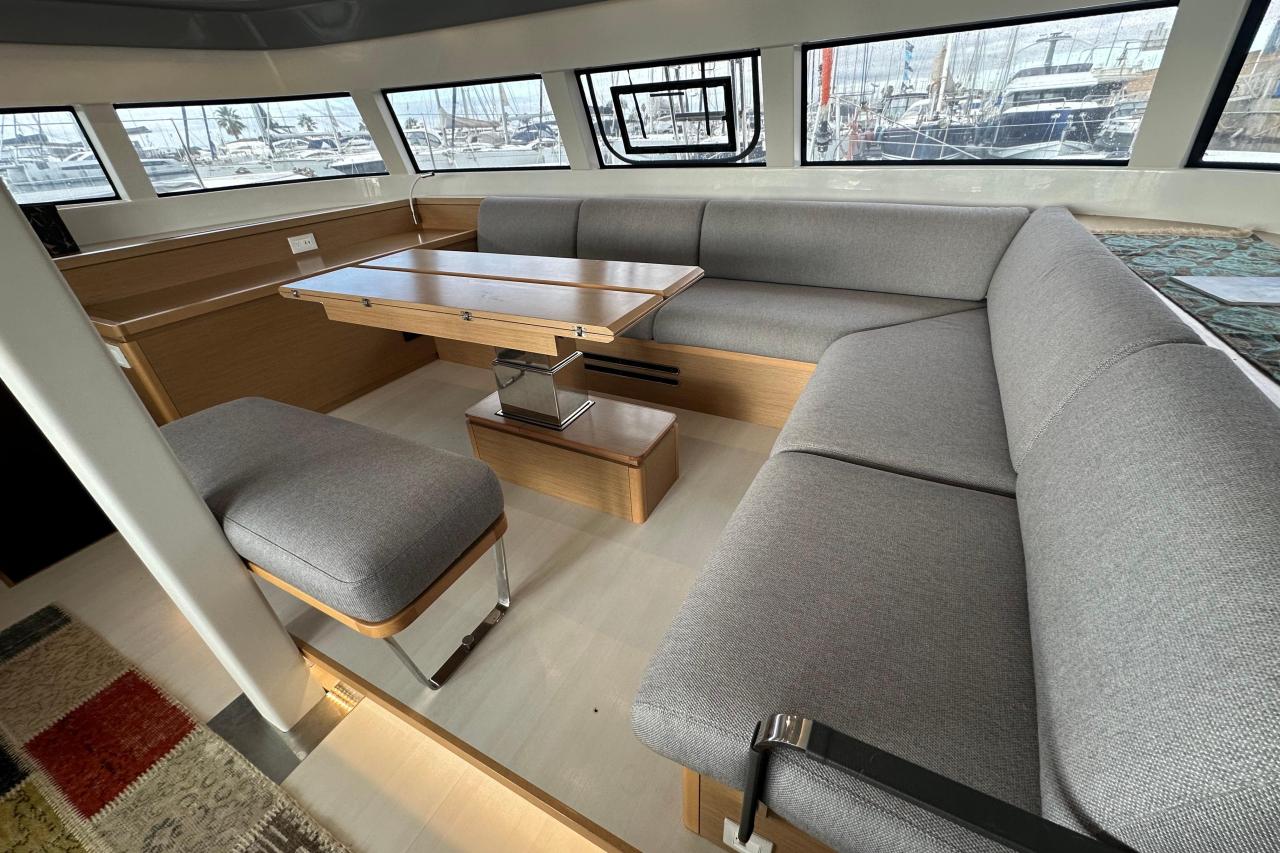

Huge, raised salon/dining area with a 360° view
Interior Light Oak finish
ENGINES & PROPULSION
2 x YANMAR 4JH80
Sail Drive SD 60
Warranty 06/2028
Hrs: 1240

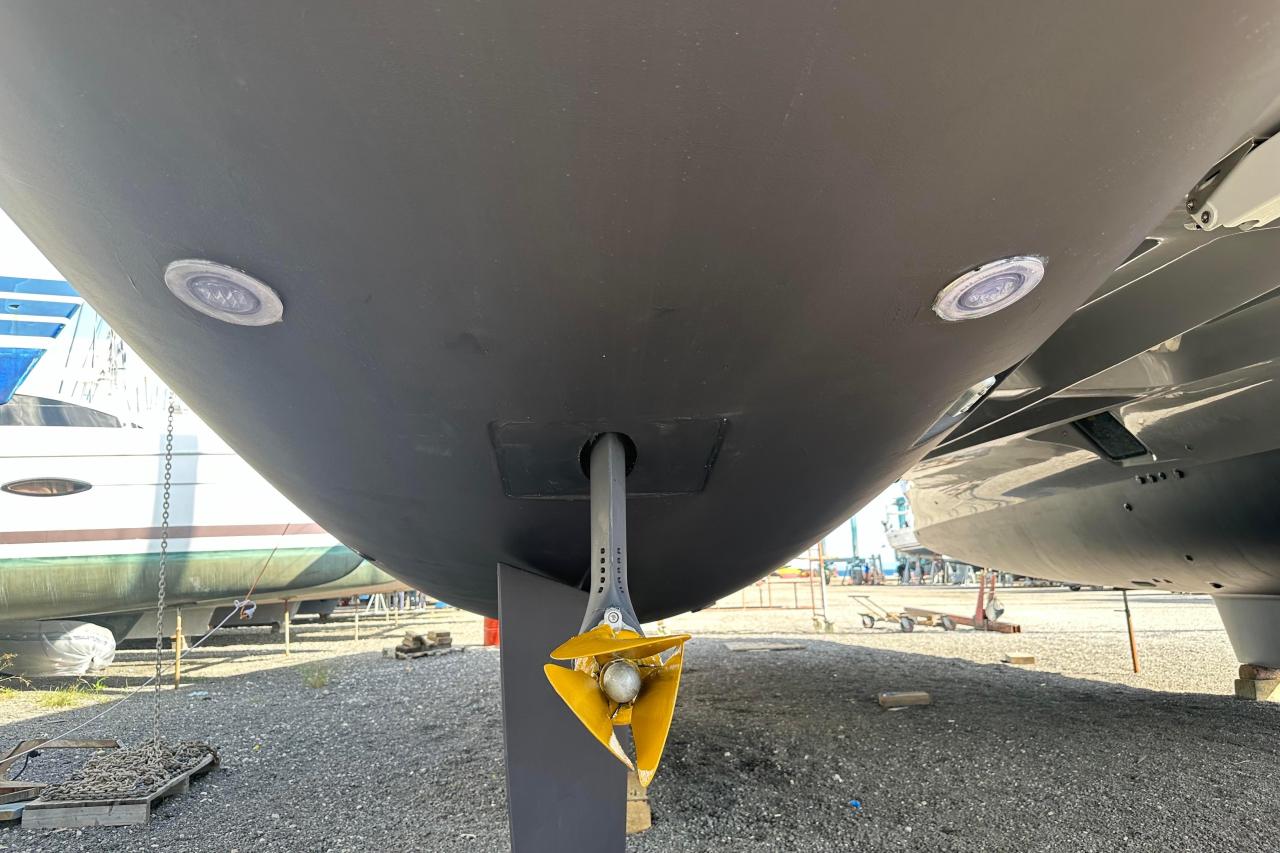

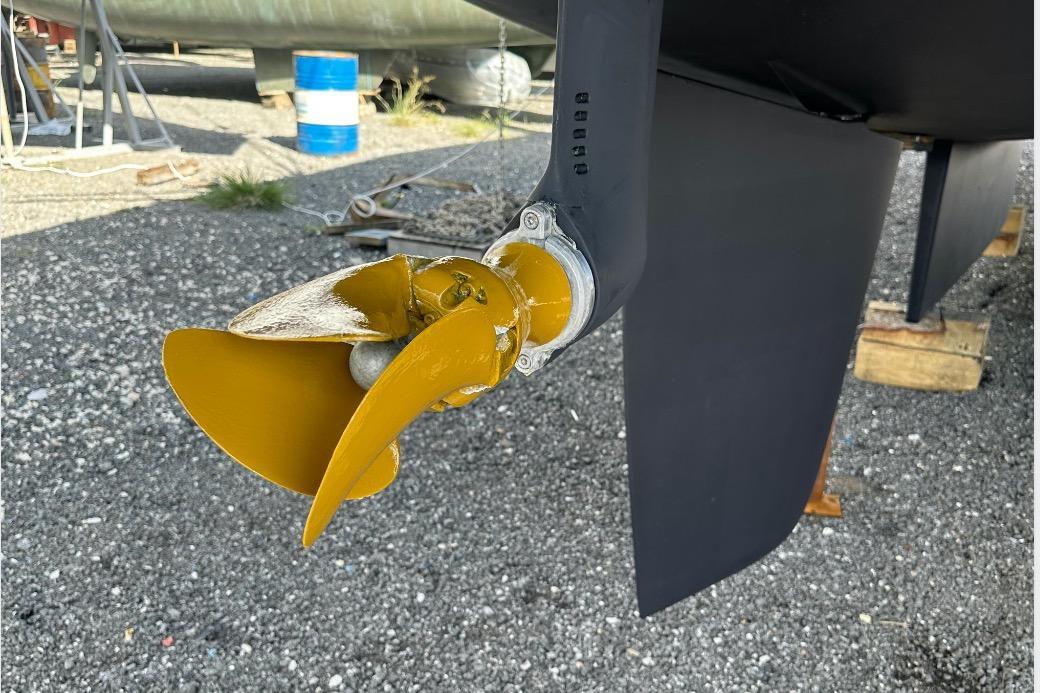

Folding 3 blade propellers
Cruising speed: 8 kts + @ 2300 rpm
Bow Thruster 24 DC with 2 separate batteries
ELECTRICAL SYSTEM
DC Electrical system 12 DC
6 x AGM services batteries 140 Amps capacity each, Total of 840 Amps
2 x starter batteries for engines 50 Amps capacity each, Total 100 Amps
Emergency battery coupling
1 x starter battery for generator 90 Amps
2 x separate batteries for 24DC bow thruster

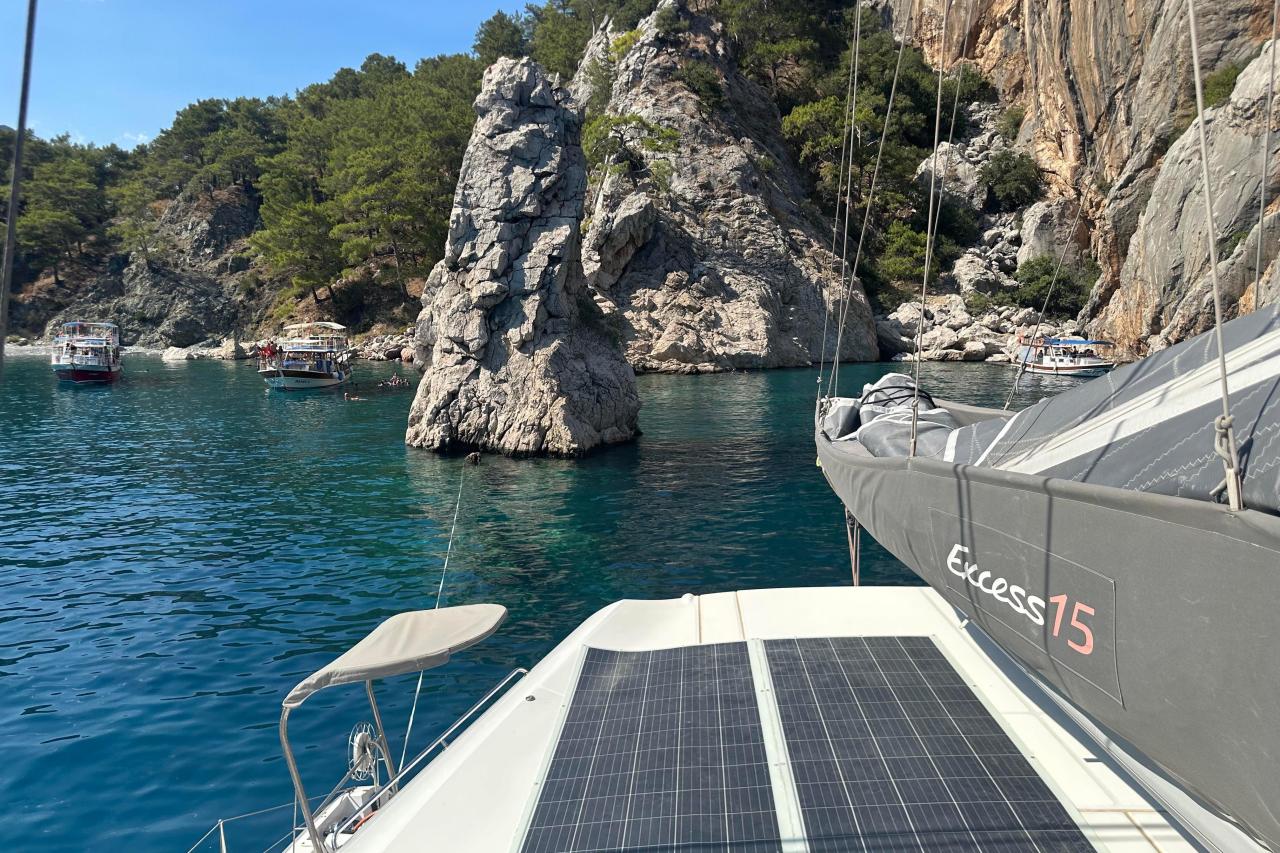

5 x Semi Flexible Sonar panels on hard top with a total capacity of 1550 Watts
AC Electrical circuit 110 V – 220 V
Shore Power Frequency Converter ANG SPC 12.5 KW
Input: wide range120/260V 1ph 50/60Hz
Output: 120/220V
Shore power cables 50’ x 2 with 32 and 50 Amps plugs
Set of shore power adaptors
Battery chargers x 2. Total of 160 Amps capacity
Mastervolt Inverter 2000W
AC outlets in cabins and salon
Generator PAGURO 14 KVA
Hrs: 620
INTERIOR EQUIPMENT
Watermaker SEAWATER PRO MODULAR 150 L/hr
DOMETIC Air Conditioning with a total capacity of 64,000 BTU
Set of custom bedspreads and sheets for all double berths
New Interior Upholstery 07/2024
Custom Texaline covers for salon windows UV filtration
Grey Corian work surface on Port and STBD on sides the salon entrance

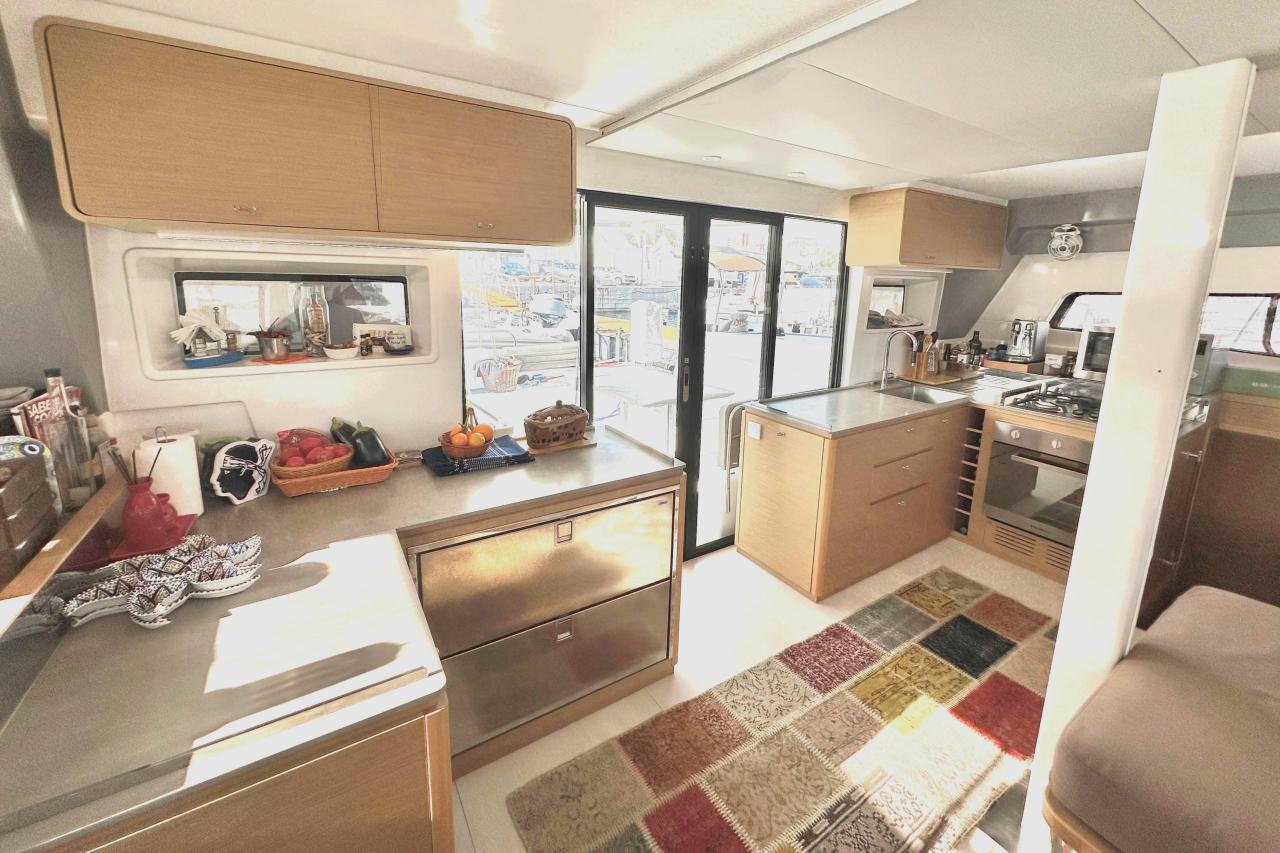

Four burner Gas Hob
Two-burner Oven
Convection microwave
Large refrigerator with 2 large drawers
Freezer x1
Wine cooler x 1
Splendid Washer Dryer 5 kg
EXTERIOR EQUIPMENT

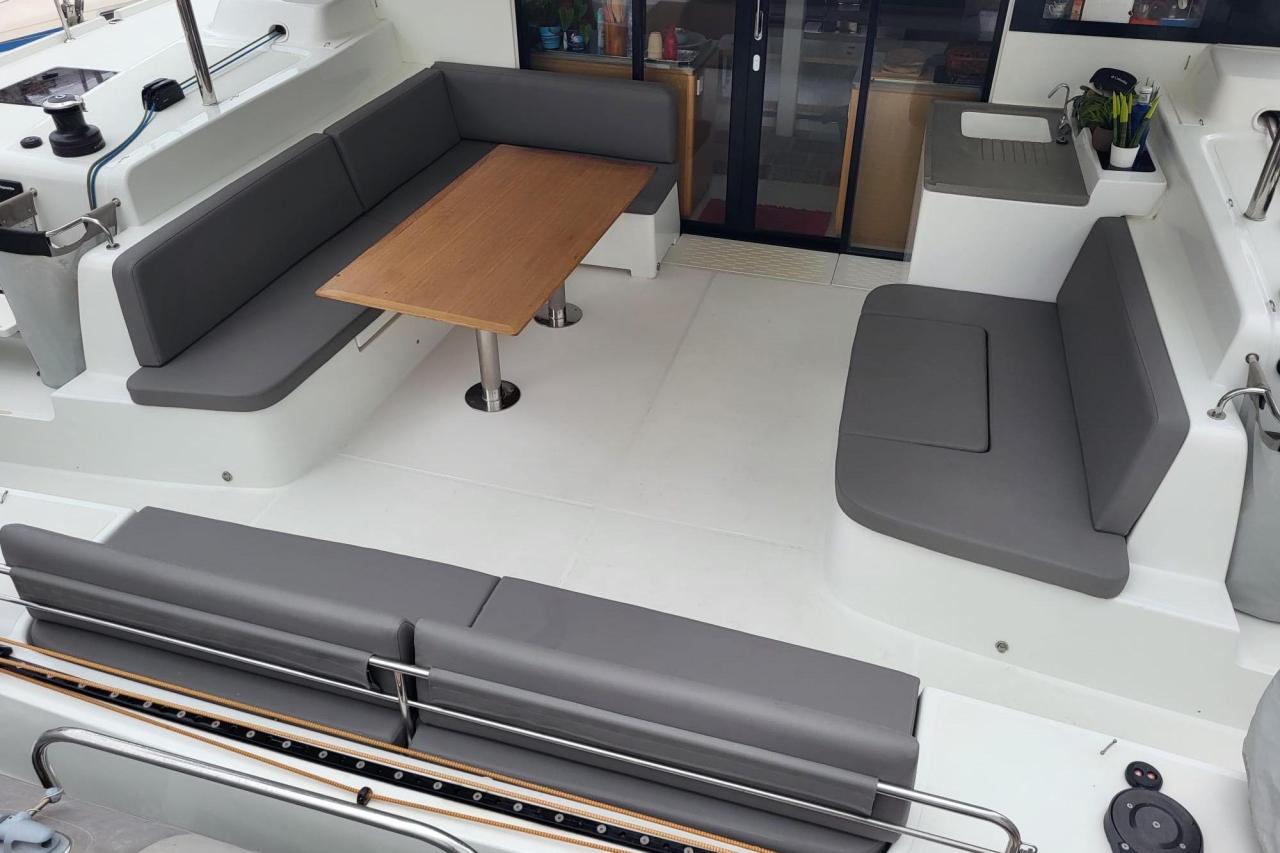

Cockpit seating for 10 persons
New Exterior Upholstery 07/2024
New set of cushions in grey ultra leather with fast dry foam
Cockpit table with cover
Courtesy lights in cockpit and transom steps
Twin helm stations with 2 carbon wheels + covers
Folding helm seats on both sides
Furniture in cockpit with countertop and sink
Cockpit fridge
Cockpit shower
Shore water inlet
Folding swim ladder x 1
Carbon fiber gangway x 1
Blue underwater lights x 4

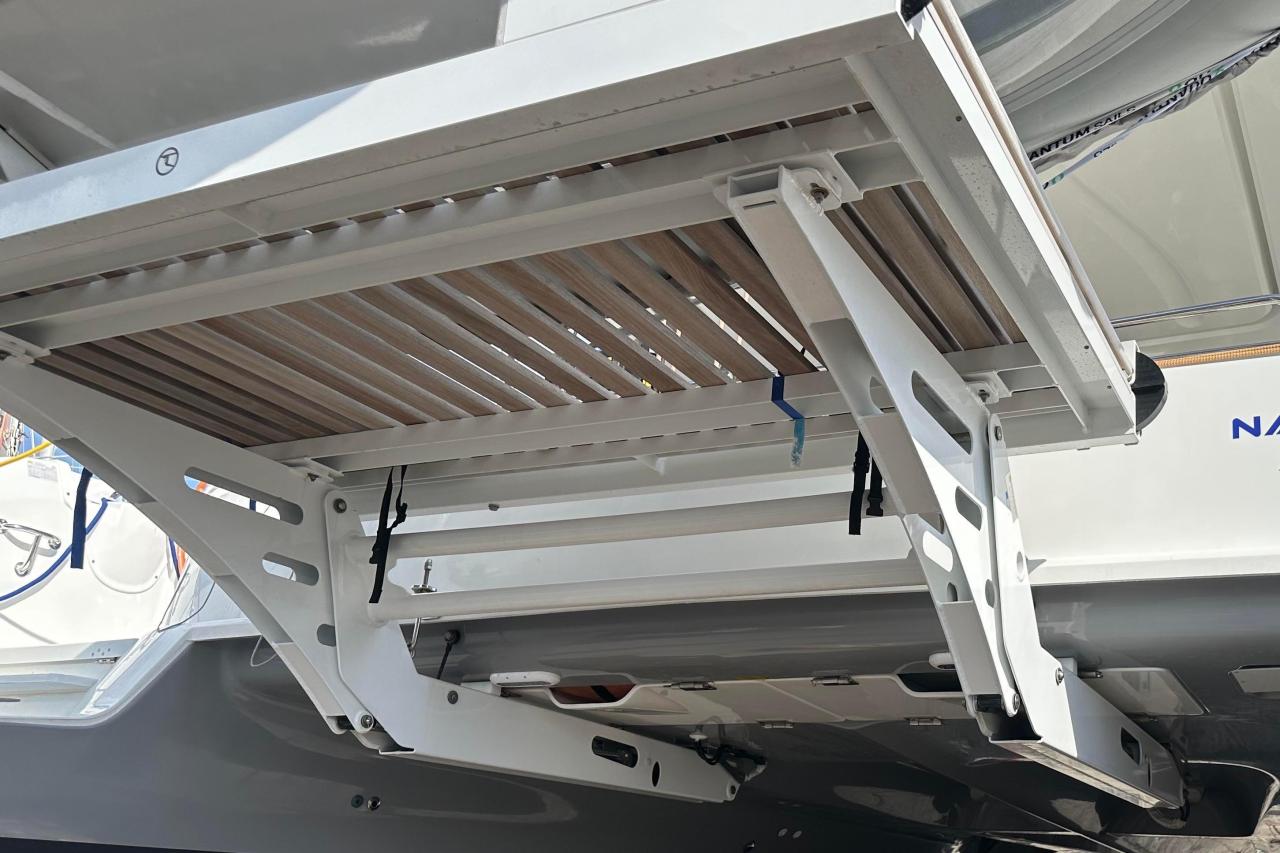

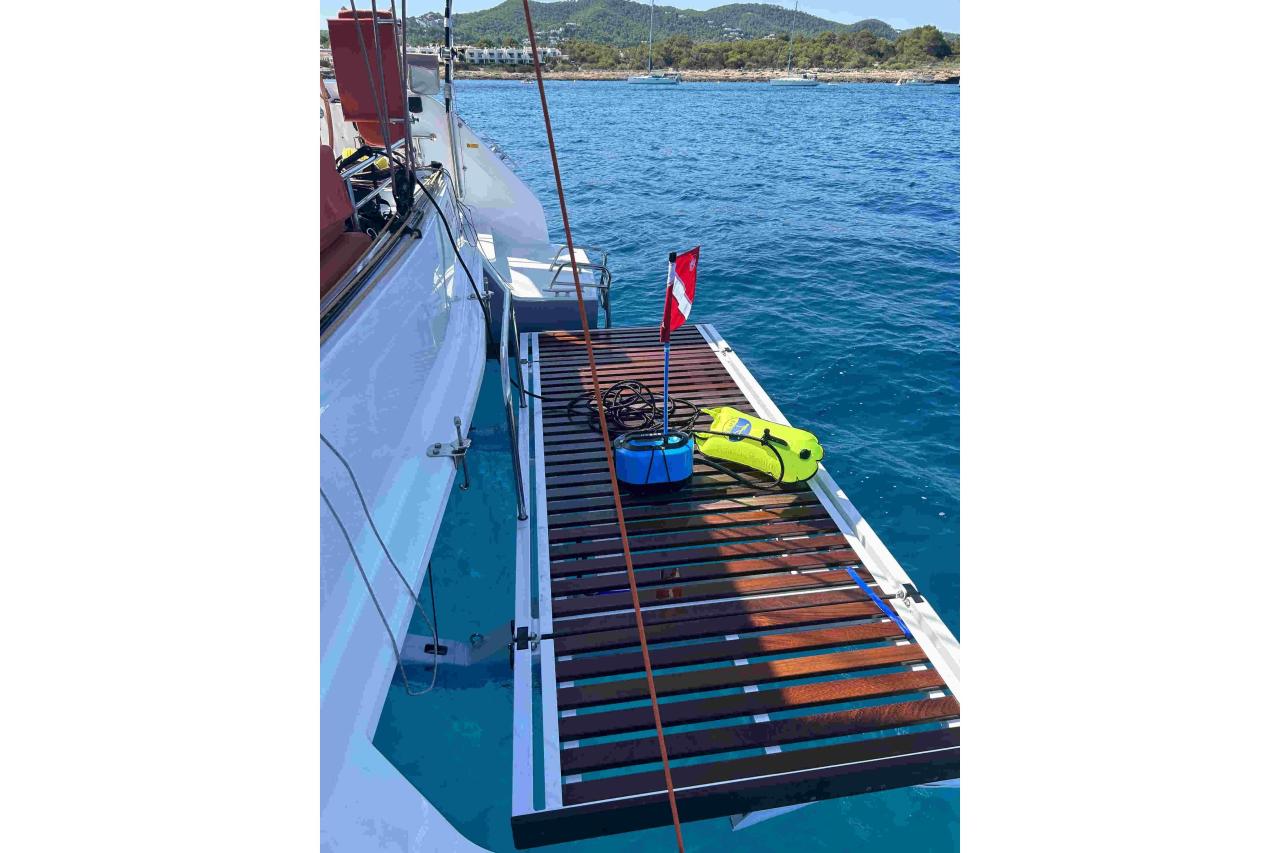

Hydraulic platform tender and bathing
Lewmar Windlass 1500W
Spade galvanized anchor / 12 mm Dia. Anchor chain
Biminis over Port and STBD helm stations
Fluorescent Dyneema fiber lifelines
Large trampoline
LED Navigation, anchor, steam and flood lights
RIGGING & SAILS
Performance Rig
Sparcraft Mast and Canoe boom
Incidence Sails 2023
Full Batten Mainsail 109 sqm
Solent 59 sqm
Code 0: Aramid Composite UK Sailmakers 2024: 131 sqm

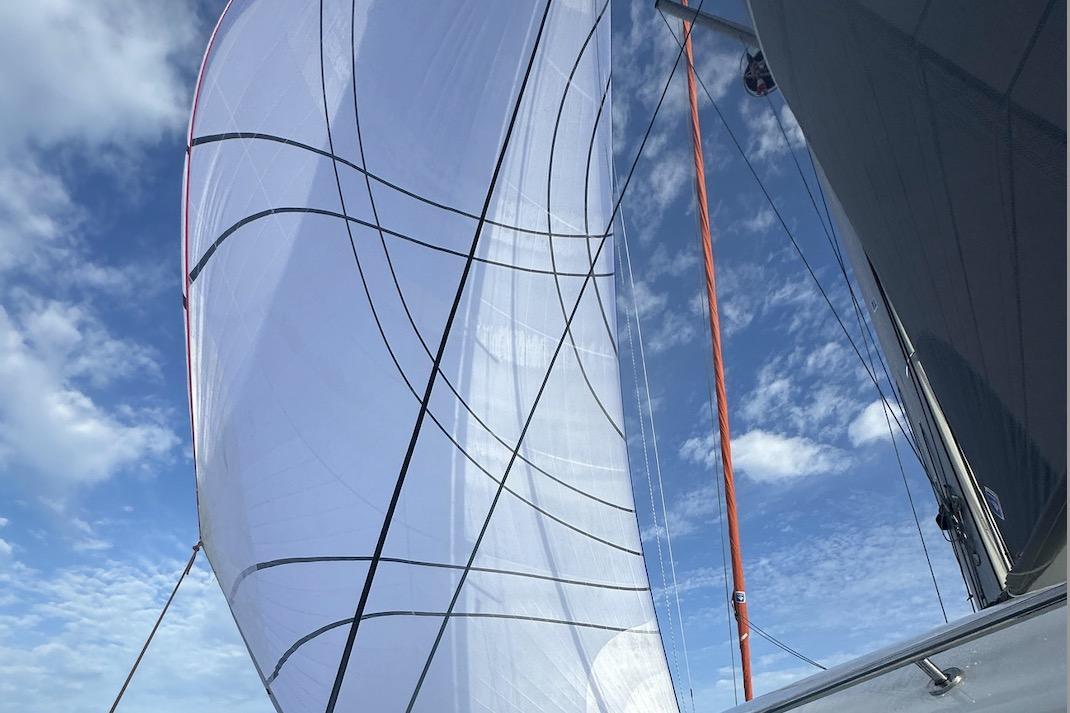

Asymmetrical Spinnaker Evolution Sails with ATN sleeve 2023: 160 sqm
Dyneema lines running rig
All Harken electric winches
Harken ST 50 Electric Winches x 3
Harken Electric Flat Winder 250 for traveler
PLUMBING
Fresh water tanks 2 x 375 L / 2 x 96 US Gal
Jabsco Fresh Water Pump
Isotherm Water Heater 45L
Watermaker SEAWATER PRO MODULAR 150 L/hr
Fuel tanks 2 x 520 L / 2 x 137 US Gal
Black waters tanks 2 x 120 L / 2 x 32 US Gal
Electric freshwater toilets x 3
Manual sea water toilet in Fwd Port forepeak x 1
Manual bilge pumps x 2
Automatic electric bilge pumps x 2
ELECTRONICS
Twin helm stations
RAYMATINE AXIOM 12” chart plotters x 2
RAYMARINE Autopilot control displays x 2
Remote control for autopilot x1
RAY 90 VHF radios x 2
RAY Wind speed and Angle display x 1
Portable VHF
Chart table
Ritchie Compass
Marine HP STARLINK Antenna
SEANAPPS technology
Steiner binoculars
Night vision binoculars
ENTERTAINMENT
Fusion stereo and speakers and salon and cockpit
Smart 23” TV in salon
TV antenna
TV connection and bracket in owner’s cabin
SAFETY EQUIPMENET
REVERSE Offshore Liferaft 8 Pax
Set of 14 life jackets inc. 6 x PFD w /CO2 cylinders
Flares, Horn, throw away cushions, signal mirror
EPIRB GlobalFix™ V4 CAT 1
AIS
Set of fire extinguishers
Smoke and highwater alarms
ADDITIONNAL EQUIPMENT:
Tender HIGHFIELD CL 340 FCT Console # HFM31676H223
YAMAHA F25 WTC Yamaha Outboard engine
Custom covers for tubes and outboard engine
Storage cover for tender
2 x BOOTE SUP boards
Inventory of spare parts for machinery and systems
MAINTENANCE
Complete polish and wax of hull topsides and deck superstructures 05/25
Complete technical documentation
Professional maintenance
